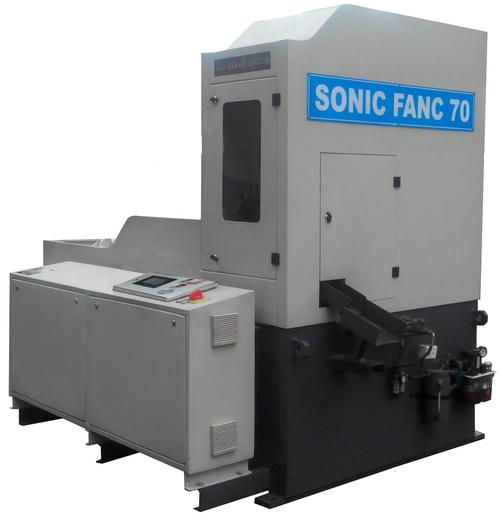

Fully Automatic Circular Saw Machine

Fully Automatic Circular Saw Machine
Fully Automatic Circular Saw Machine
Product Code : CM
Brand Name : ZEAL TECH AUTOMATION
Trade Information
  • Unit of Measure
  • Unit/Units
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID)
  • Supply Ability
  • As Per Requirement
Product Description

Ours is a renowned organization, engaged in manufacturing and supplying Fully Automatic Circular Saw Machine, which is designed using PLC controlled automation system. Made using supreme grade raw materials; our machine gives precision and in-depth sawing with its stainless steel blades and thus increasing productivity and reducing the manpower. Our machine finds its usage in various industries like civil, construction, metal fabrication, steel plants, carpentry and automobile workshops. This Fully Automatic Circular Saw Machine is highly demanded for its high performance, easy installation & maintenance, hassle-free operations and longer service life.

Technical Specifications



Sonic FANC 70

Sonic FANC 90

Sonic FANC 110

Sonic FANC 125

Cutting Capacity

Round Bar/Pipe

10-70mm

20-90mm

20-100mm

25-125mm

Square Bar

10-50mm

20-65mm

20-70mm

25-100mm

Stock Bar length

2-6 Mtr

2-6 Mtr

2-6 Mtr

2-6 Mtr

Cutoff length

20-300mm

20-300mm

20-300mm

20-300mm

Crop cut length

20-60mm

20-60mm

20-60mm

20-60mm

Remnant End length

110mm

110mm

130mm

150mm

Saw Blade speed in mtr/min

40-160

40-160

40-160

40-160

Saw Feed

Infinitely adjustable in mm/min

1000

1000

1000

1000

Rapid return in mm/min

8000

8000

8000

8000

Feed Carriage

Advance in mtr/min

7.5-60

7.5-60

7.5-60

7.5-60

Rapid return in mtr/min

120

120

120

120

Cut off lengths in mm

10-1500

10-1500

10-1500

10-1500

Single feeding length in auto cycle in mm

500

500

500

500

Loading Table specifications

Bar lengths in mtr

1.6-6

1.6-6

1.6-6

1.6-6

Models

  • Sonic FANC: Fully Automatic Numeric Control
  • Sonic FAHC: Fully Automatic Hydraulic Control
  • Sonic SANC: Semi Automatic Numeric Control
  • Sonic SAHC: Fully Automatic Hydraulic Control

Construction/Functional Detail

  • Torsion free construction of Heavy duty Fabricated Structure of Machine.
  • Infinitely variable controlled cutting feed.
  • Cutting feed through Ball Screw Servo motor and VFD for Variable cutting speed.
  • Rapid approach (reference) movement of Cutting Head by Ball Screw Servo motor.
  • Indexing of job through Ball Screw Servo motor arrangement.
  • Auto return of cutting head after completion of cut.
  • Auto and manual mode for cycle sequence.
  • Hydraulic Operated job clamping horizontal and vertical Vice.
  • Heavy duty reduction Gearbox for heavy cutting torque directly coupled to main saw motor mounted on linear guide ways for vibration free cutting to optimize cutter life and production.
  • Inbuilt flood coolant tank and micro mist cooling arrangement.
  • Separate Hydraulic Power pack with all control valves, gauges & Oil level Indicator for easy check & maintenance.
  • Electrical Control Panel with high quality switchgears
  • The saw motor speed is controlled with A.C. frequency drive.
  • Horizontol Saw stroke with pivot point under the clamping table, optimized to achieve the shortest stroke of the Saw.
  • Driver brushes for cleaning of chips from circular blades
  • Automatic trim Cut.
  • Saw Blade guided by two Carbide pads on both sides.
  • Cut of length measured by PLC Using Servo Drive arrangement.
  • Crop Cut & End Cut Seperator.
  • PLC Control system with Touch Screen HMI.
  • Powerd Chip conveyor.
  • Auto Lubrication pump.

Optional Supply

  • Auto Loading Table.
  • Roller Table 6 Mtr.
